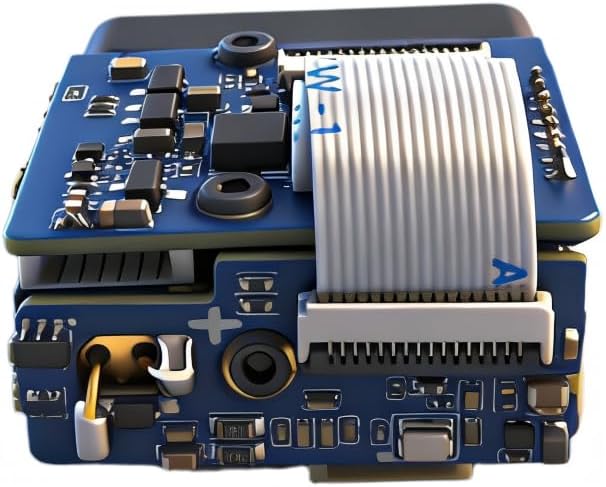

SPD1200S2G High Precision Single Photon Laser Ranging Module, Long Distance Measurement Sensor, High-Precision Compact Laser Rangefinder Module with 6-Axis Gyroscope

The SPD1200S2G is a high-precision, compact laser ranging module featuring an integrated 6-axis gyroscope, designed for demanding measurement applications. Operating at a center wavelength of 905 nm, it delivers a measurement range of 0.2 m to 1,200 m, with nighttime performance reaching up to 1,500 m. Ranging accuracy is ±0.3 m for distances up to 328 ft (100 m), making it ideal for precision tasks. The adaptive measurement frequency of 4–15 Hz and a measurement accuracy rate of ≥98% ensure reliable, real-time data. The integrated 6-axis gyroscope enables spatial coordinate acquisition and straight-line distance calculation between any two points in space. With a UART-TTL communication interface, dedicated test software, and communication protocol documentation, it supports seamless secondary development. Weighing just under 10 g and measuring 24.6 mm × 14.45 mm × 26.3 mm, this compact module operates across -4°F to 140°F (-20°C to 60°C) and carries an IP67 protection rating. It is well-suited for night vision devices, thermal imagers, telescopes, perimeter security, aviation, railways, and outdoor sports applications.

• HIGH-PRECISION LASER RANGING: The SPD1200S2G module operates at a 905 nm wavelength with a measurement range of 0.2 m to 1,200 m (up to 1,500 m at nighttime) and ranging accuracy of ±0.3 m at under 100 m.
• INTEGRATED 6-AXIS GYROSCOPE: The built-in gyroscope captures spatial coordinates and calculates straight-line distances between any two points in space, with a tilt angle accuracy of 0.3° and heading angle accuracy of ≤0.75°.
• FAST & RELIABLE PERFORMANCE: Features an adaptive measurement frequency of 4–15 Hz, a measurement accuracy rate of ≥98%, a false alarm rate of ≤1%, and a startup time of ≤200 ms.
• COMPACT & DURABLE BUILD: Weighing just 10 g with dimensions of 0.97" x 0.57" x 1.04", this module carries an IP67 protection rating, IEC Class I laser safety classification, and operates from -4°F to 140°F.
• VERSATILE APPLICATIONS: Ideal for handheld night vision devices, thermal imagers, telescopes, and laser illuminators, as well as perimeter security, aviation, railways, law enforcement, and outdoor sports.
