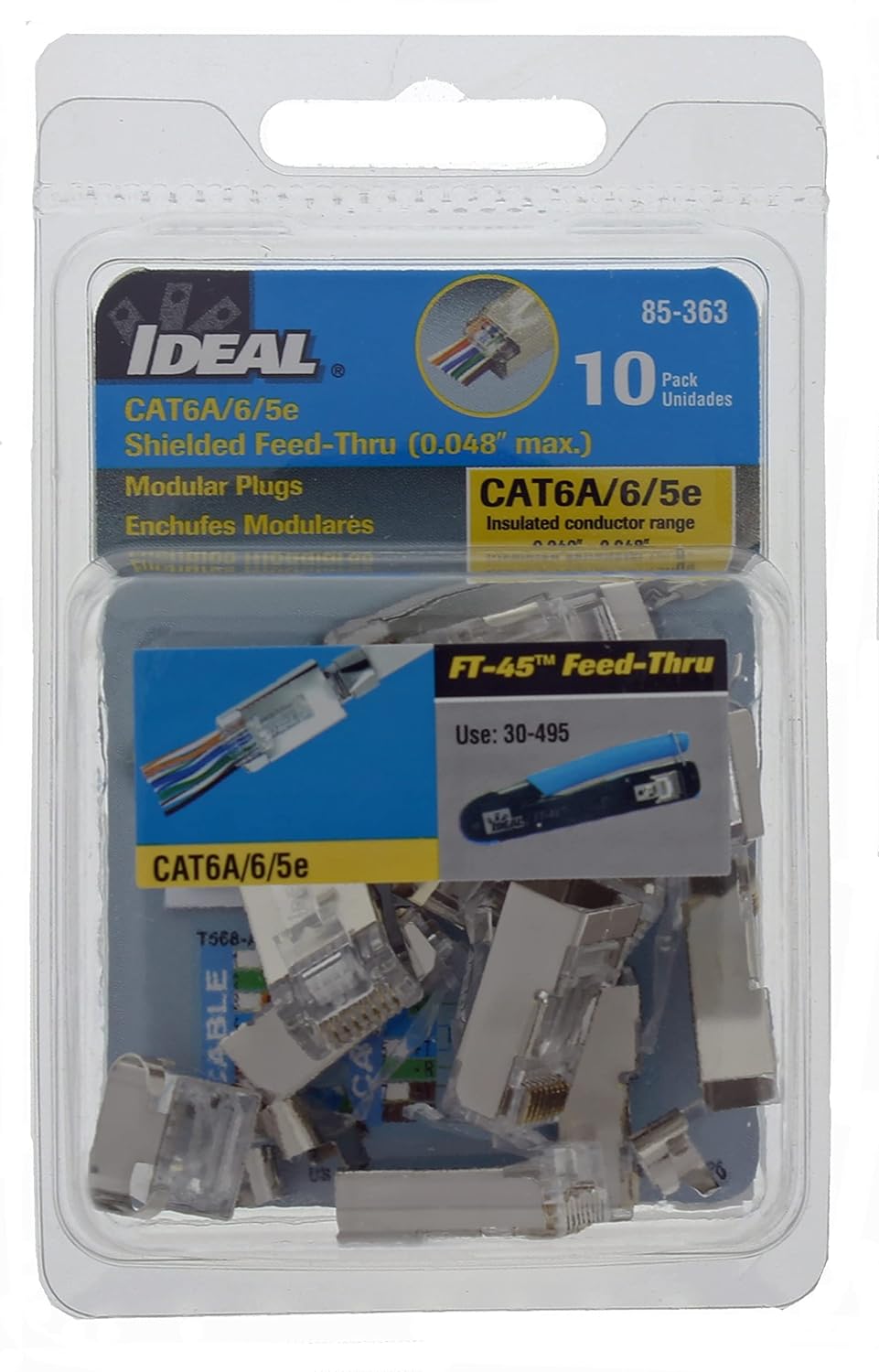

Ideal Electrical 85-363 Shielded Feed-Thru Modular Plug Connector, Cable Connector for CAT6A/6/5e Shielded Cables, (10 Connectors)

These single piece 8P8C RJ-45 connectors are designed to work with cable conductors ranging from 22 to 24 AWG solid with an overall insulated diameter of 0.040” - 0.048” per conductor. The single piece Feed-Thru design simplifies the challenges faced when assembling and terminating twisted pair cables with larger diameter conductors, over 0.041”, when use of a standard in-line connector is not an option. A unique staggered conductor hole layout and multi-length contact pins are incorporated to accommodate the larger conductors. The single-piece housing design helps to funnel the conductors through the connector and out of the Feed-Thru end. No precision length trimming, load bars or multi-piece assemblies are required. The connectors are then terminated with the FT-45™ Modular Plug Crimp Tool. The FT-45™ Crimp Tool does not require any adjustments or blade changes to use these connectors. The shielded connector is designed for 0.040” through 0.048” insulated conductors which are typically found in CAT6A, CAT6, and CAT5e shielded cables. Shield continuity can be made internally by folding the cable foil over the jacket and making contact with the inside of the connector walls or externally by wrapping the cable drain wire around the base of the jacket strain relief clip. The jacket strain relief clip (shielded model) is pre-positioned in the up position so cable insertion is simplified. The pre-formed clip can be closed and crimped with a standard needle nose or plier-nose device like the IDEAL® 33-719 or other IDEAL® T®-Stripper Wire Strippers. Pin contacts are a 3 prong design and have 50u” gold plated contact areas. Both plugs are UL Listed. The FT-45™ crimp tool, (IDEAL® 30-495) is required to properly terminate these connectors.

• ETHERNET CONNECTOR: This RJ-45 connector can be terminated to shielded cables having insulated conductor diameters between 0.040 in. and 0.048 in., max jacket diameter of .320 in. and having copper conductors that are 22 to 24 AWG solid.
• PRACTICAL DESIGN: Single piece shielded design allows conductors to feed-thru the end of the connector to verify conductor order. The FT-45 tool [30-495 sold separately] crimps and removes excess conductor length.
• CONSTRUCTION: Single piece design 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles, UL listed. Staggered pin and conductor design. Supports 10 gigabit CAT6A installations.
• TERMINATION: As conductors feed-thru the connector face, all are visibly inserted far enough to be pierced by the pin below - eliminates short wires or opens.
• SPECIFICATIONS: The package contains [10] modular plug connectors. The pre-formed jacket or clip can be closed or crimped easily with a crimping plier to secure to the cable.
