generic Wind Speed Direction Sensor with Signal Output IP64 0-2.5V, 3-Cup Anemometer with Aluminum Alloy Housings, DC5V Power for Monitoring

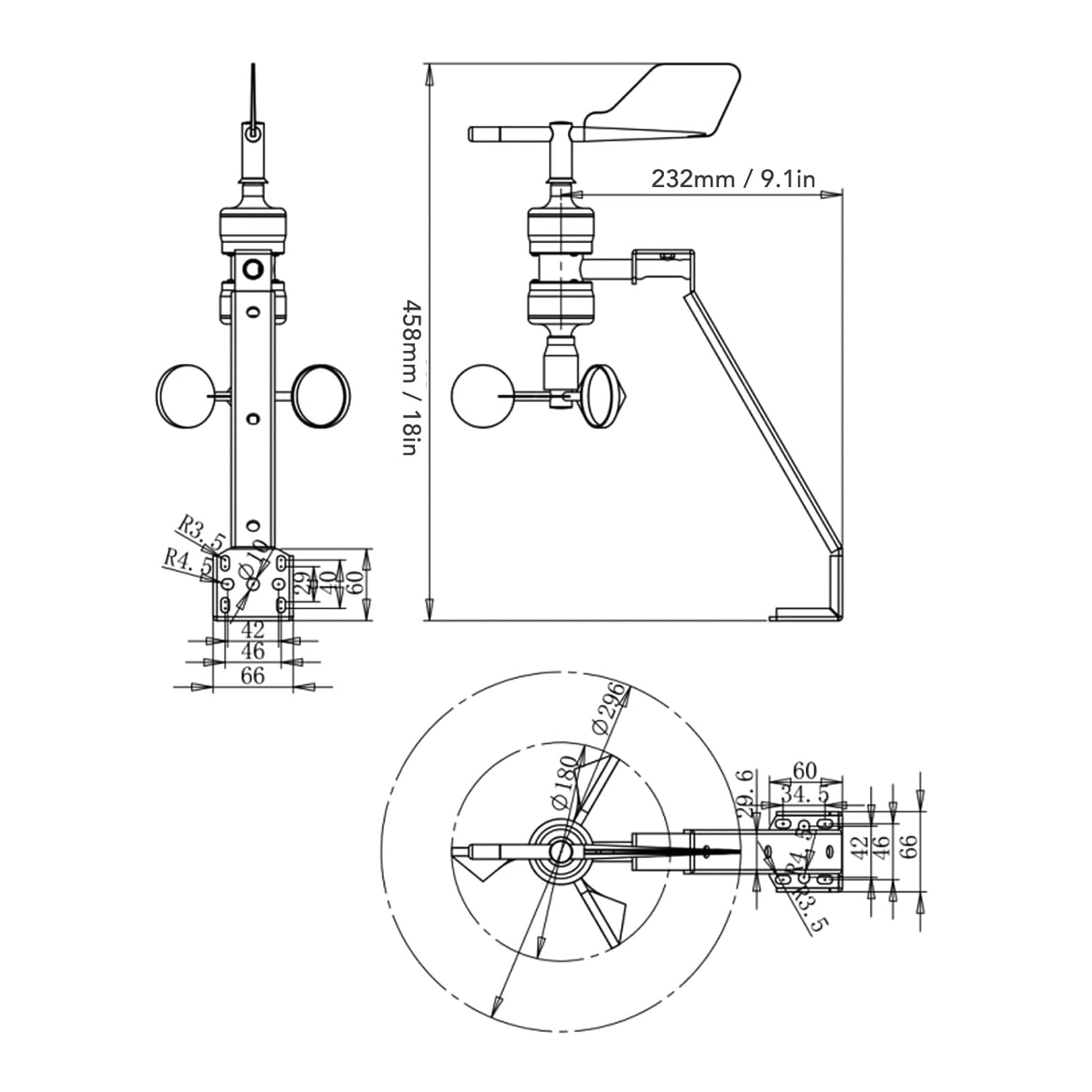

Specifications: Item Type: Wind Speed Direction Sensor Product size: Approx. 458 x 232 mm/18 x 9.1 inches. Material: ABS, aluminum alloy Measuring object: wind speed, wind direction Power supply voltage: DC5V Signal output: 0-2.5V Measuring range: Wind speed 0-45m/s Cable length: approx. 5.2 m / 17.1 feet. Accuracy: Wind speed: ±(0.3+0.03V)m/s, Wind direction: ±3° Resolution: Wind speed: 0.1 m/s, Wind direction: 1° Initial wind speed: ≤0.5m/s Maximum power consumption: 0.9W Load capacity: DC12V power supply, current outputimpedance ≤350Ω, power supply DC24V, current output impedance ≤900Ω, voltage output impedance ≥1KΩ Operating environment: Temperature -35℃-60℃, Humidity ≤100%RH non-condensing Protection level: IP64 Cable Grade: Rated Voltage: 300V80℃ Application: Meteorology, Marine, Environment, Airport, Port, Laboratory, Industrial & Agricultural, and Transportation Calculation formulas: 0-2.5V: F=V/2.5 x A+B F: Indicates the value of the direction or wind speed sensor, m/s o° V: Sensor output voltage, V A: Sensor range width (upper range minus lower range) B: Minimum value of sensor range (lower limit range) 4 Installation Methods: 1.Horizontal bottom mount, the wind direction should face up 2.Horizontal top mounting, the wind direction should face upwards. 3.Vertical side mounting, the wind direction should face up 4.Pole mounting, the wind direction should face up Wire connection method: Red wire: energy positive Green wire: power negative and signal ground White wire: wind speed signal Blue wire: direction sign

• Wind Speed Direction Sensor: This built-in sensor is suitable for measuring wind speed and direction, with a wind speed range of 0-45m/s.Using DC5V power supply, 0-2.5V signal output.
• 3 Cup Structure: The wind speed section adopts 3-cup structure and ABS material ensures high strength. It has the advantages of good starting, wide range, excellent linearity and high stability.
• Wind direction part: adopts angle sensor. When you change the wind direction, the rear wing rotates the shaft to drive the sensor magnet and the angle sensor detects the in the orientation of the magnet.
• Installation Methods Built-in S-type wind speed and direction sensor, compatible with bottom and top horizontal installation, vertical side and pole, the wind direction should face up, suitable for various scenarios.
• Safe and reliable: with high-precision processing, the aluminum alloy shell has high strength and light weight.Outer cover for rain edges, built-in sealing ring, waterproof and dustproof, with IP64 protection level.
